Stainless Steel Instrument Ball Valves | SS304 & SS316 | Compact & Leak-Proof Design
Get Quote

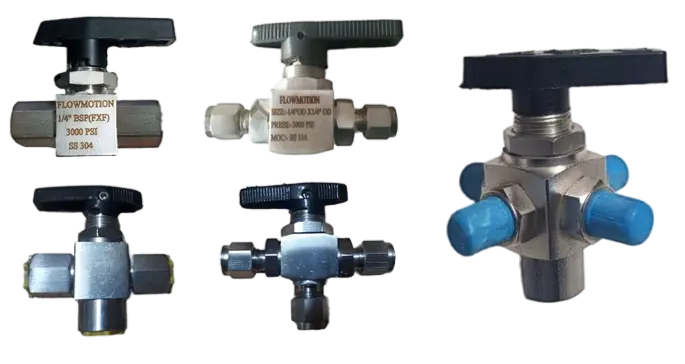

Our stainless steel panel mounting ball valves are specially designed for control panels, pneumatic lines, and hydraulic systems where compact installation and reliable shut-off are essential.
FlowMotion Hydraulics & Instruments is a leading manufacturer, supplier, and exporter of high-pressure stainless steel Instrument Manifold Valves designed for accurate pressure measurement, isolation, venting, and calibration in industrial instrumentation systems. Our manifold valves ensure leak-proof performance, compact installation, and long service life under demanding operating conditions.
We manufacture precision-engineered 2 Way, 3 Way, and 5 Way Manifold Valves suitable for differential pressure transmitters, gauges, and process control applications. These valves are widely used in oil & gas industries, petrochemical plants, power stations, pharmaceutical industries, hydraulic systems, and industrial process lines across India and global markets.
Our instrument manifold valves are available in SS316, SS304, Carbon Steel, and other special alloys on request. Designed to handle pressures up to 6000 PSI (optional up to 10000 PSI) and high temperature conditions, these valves are manufactured using high-quality raw materials in compliance with international standards to ensure safety, reliability, and system efficiency.
Each valve undergoes rigorous quality inspection and testing procedures. Standard testing includes nitrogen seat and packing leakage test at 1000 PSI, and hydrostatic test at 1.5 times of the working pressure to ensure zero leakage and dependable field performance.
SS304 / SS316 / Carbon Steel
Up to 15000 PSI
-20°C to +180°C
NPT / BSP / BSPT / SW / Flanged
| Valve Type | 2 Way / 3 Way / 5 Way Manifold |
|---|---|
| Pattern Type | T Type / R Type / H Type |
| Inlet / Outlet Size | 1/4″ to 2″ |
| Connection Type | NPT, BSP, BSPT, Socket Weld, Flanged |
| Materials of Construction | Stainless Steel (SS304, SS316), Carbon Steel |
| Maximum Operating Pressure | 3000 / 6000 / 10000 / 15000 PSI |
| Operating Temperature | -20°C to +180°C |
| Seat / Packing Material | PTFE / Graphite (Grafoil) / Metal to Metal |
| Drain Connection | 1/4″ NPT (With Blind Plug) |
| Testing | Nitrogen Test @ 1000 PSI / Hydro Test @ 1.5x Working Pressure |
| Mounting Option | Panel Mount / Base Mount |
Our high-pressure stainless steel instrument manifold valves are widely used for pressure isolation, venting, calibration, and differential pressure measurement applications across industries where leak-proof performance and system reliability are essential.
We also manufacture a complete range of stainless steel valves and hydraulic components to meet diverse industrial and control panel application requirements.
Contact our technical team for customized Panel Mounting Ball Valve solutions based on your pressure rating, material grade (SS304 / SS316), and control panel application requirements.
