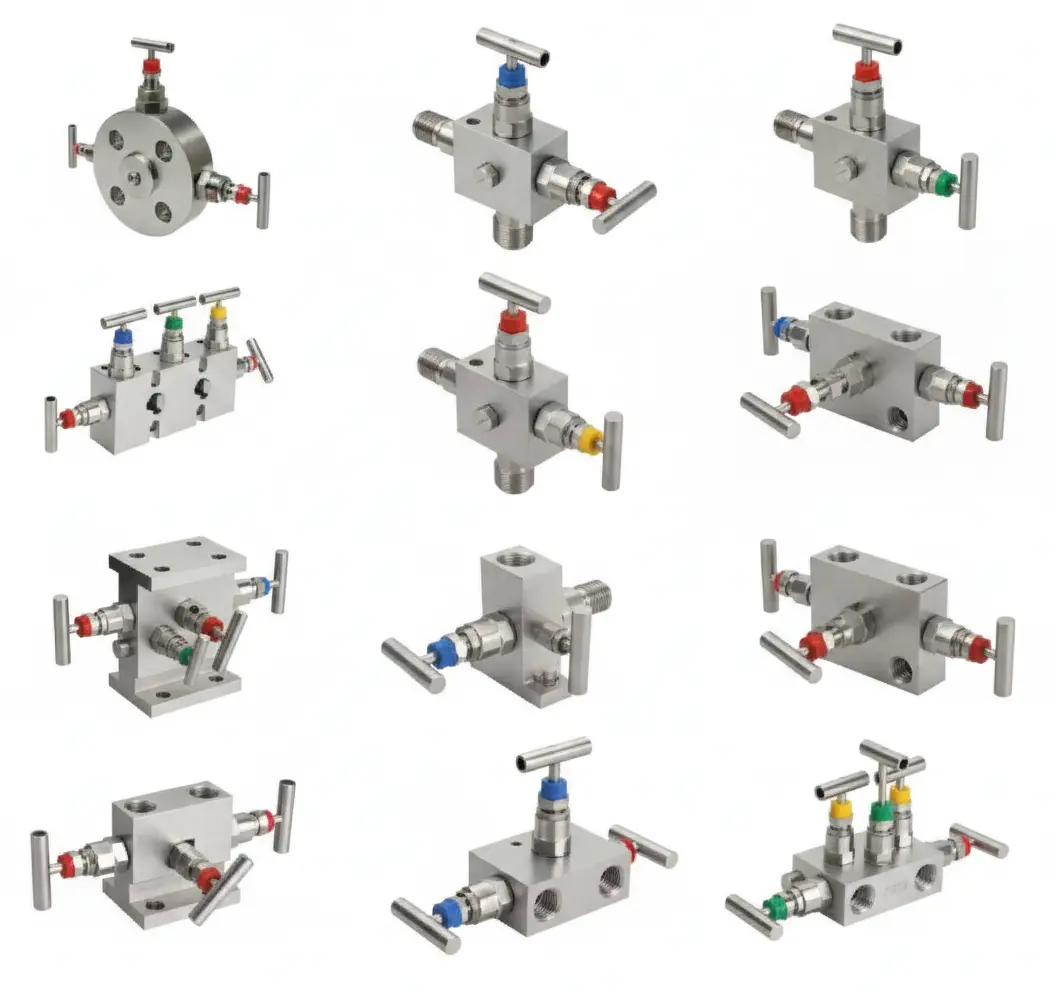

High Precision Stainless Steel Instrument Manifold Valve Manufacturer in Ahmedabad

High Pressure Instrument Manifold Valves

FlowMotion Hydraulics & Instruments is a trusted manufacturer and supplier of precision-engineered instrument manifold valves including 2-way, 3-way, and 5-way manifold valves designed for accurate pressure measurement, isolation, and control in demanding industrial systems.

  • ✔ Available in 2 Way, 3 Way & 5 Way Configurations
  • ✔ Stainless Steel SS316 Construction
  • ✔ Designed to Withstand High Static & Differential Pressure
  • ✔ Leak-Proof Compact Assembly Design
  • ✔ Precision Tested for Safety & System Efficiency
Request a Quote

Instrument Manifold Valve Manufacturer, Supplier & Exporter in India

FlowMotion Hydraulics & Instruments is a leading manufacturer of stainless steel instrument manifold valves engineered to meet stringent industrial standards. Our manifold valves are widely used in oil & gas plants, chemical industries, hydraulic systems, instrumentation panels, and differential pressure transmitter installations across India and global markets.

Our product range includes 2-way, 3-way, and 5-way manifold valves designed for static pressure, differential pressure, and liquid level applications. Each unit is compactly assembled to reduce size and weight while minimizing potential leak points.

Key Features
Bonnet Assembly Details

Technical Specifications of Instrument Manifold Valves

Material

SS316 / SS316L / SS304 / Carbon Steel

Pressure Rating

Up to 6000 PSI (Optional 10000 PSI)

Temperature Range

PTFE: 232°C / Grafoil: 371°C

End Connection

NPT / BSP / BSPT / SW / Flanged

Valve Type 2 Way / 3 Way / 5 Way Manifold
Pattern Type T Type / R Type / H Type
Inlet / Outlet Size 1/4″, 1/2″, 3/4″ (Custom Size Available)
Connection Type NPT, BSP, BSPT, Socket Weld, Tube End, Flanged
Maximum Working Pressure 413 Bar (6000 PSI) @ 100°C
Optional Pressure Rating Up to 10,000 PSI (On Request)
Stem Packing PTFE / Graphite (Grafoil)
Bonnet Packing PTFE / Metal to Metal
Drain Connection 1/4″ NPT (Supplied with Blind Plug)
Optional Materials Monel / Inconel / Hastelloy / Duplex Steel
Standards Compliance Sour Gas Service Available as per NACE MR-01-75
Testing 100% Factory Pressure & Leak Tested

Applications of Instrument Manifold Valves

Our stainless steel instrument manifold valves are widely used for pressure isolation, calibration, venting, and differential pressure measurement in high-pressure instrumentation and process control systems.

  • ✔ Oil & Gas Industry
  • ✔ Petrochemical Plants
  • ✔ Chemical Processing Industry
  • ✔ Power Plants
  • ✔ Pharmaceutical Industry
  • ✔ Steel Industry
  • ✔ Fertilizer Industry
  • ✔ Ship Building Industry
  • ✔ Construction Industry
  • ✔ Hydraulic & Instrumentation Systems

Instrument Manifold Valve Types

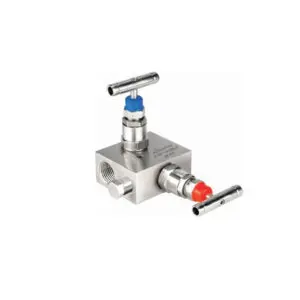

2 Way Instrument Manifold Valve Manufacturer
2 Way Manifold Valve
3 Way Instrument Manifold Valve
3 Way Manifold Valve

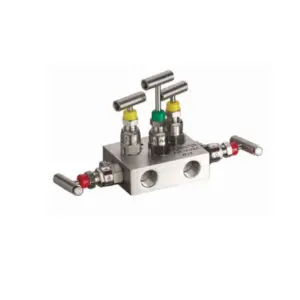

5 Way Instrument Manifold Valve
5 Way Manifold Valve
